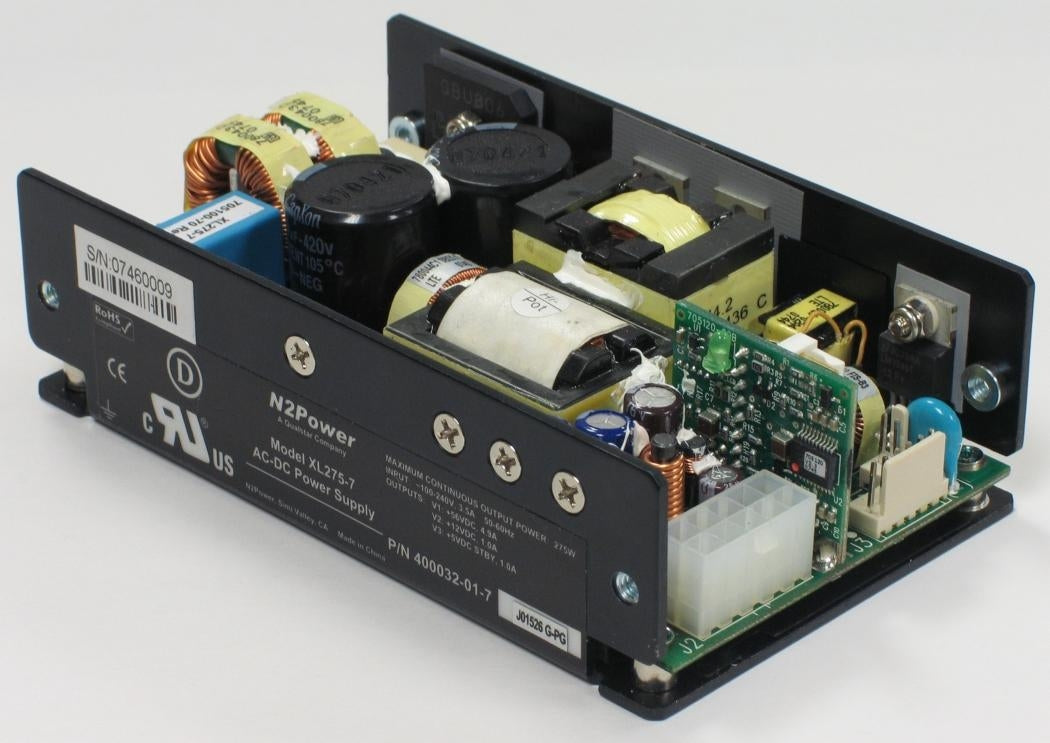

N2 Power XL275-3 (XL275-12 CS)
N2 Power XL275-3 (XL275-12 CS)
Couldn't load pickup availability
Additionally, all models provide a +5 Vstandby output (1.0A max.) whenever AC power is applied. A +12 Vaux output (1.0A max.) is also available on all models whenever the main output is on. This output is repeated on the FAN connector to provide for 10CFM of cooling airflow for the XL275. The main and +12 Vaux outputs may be disabled by opening the PS_ON/ input. These single-output models can be used as standalone power supplies or can be used in redundant or N+1 configurations with up to 4 units connected in parallel.
| Part Number | 400029-01-3 |
|---|---|
| Output | V1 |
| Voltage | +12 |
| Regulation(%) | ±3 |
| Minimum (VDC) | 11.64 |
| Nominal (VDC) | 12.00 |
| Maximum (VDC) | 12.36 |
| Maximum Load (A) | 22.92 |
| Current Sense A/V | 11.35 |
| Remote Sense ( except ATX) | V1/RTN |
| Maximum Ripple+Noise | 100 mV |
- Description
- Manufacturer
Additionally, all models provide a +5 Vstandby output (1.0A max.) whenever AC power is applied. A +12 Vaux output (1.0A max.) is also available on all models whenever the main output is on. This output is repeated on the FAN connector to provide for 10CFM of cooling airflow for the XL275. The main and +12 Vaux outputs may be disabled by opening the PS_ON/ input. These single-output models can be used as standalone power supplies or can be used in redundant or N+1 configurations with up to 4 units connected in parallel.
| Part Number | 400029-01-3 |
|---|---|
| Output | V1 |
| Voltage | +12 |
| Regulation(%) | ±3 |
| Minimum (VDC) | 11.64 |
| Nominal (VDC) | 12.00 |
| Maximum (VDC) | 12.36 |
| Maximum Load (A) | 22.92 |
| Current Sense A/V | 11.35 |
| Remote Sense ( except ATX) | V1/RTN |
| Maximum Ripple+Noise | 100 mV |
