SMX Power

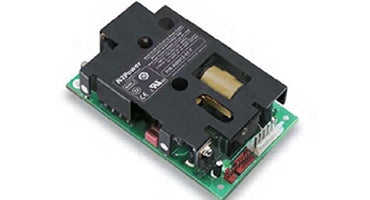

N2 Power XL160 series
N2 Power XL160 series
Couldn't load pickup availability
ULTRA SMALL, HIGH-EFFICIENCY POWER SUPPLIES
POWER SUPPLY DESIGN LEADER
N2Power continues to lead the power density y race with its new small, high-efficiency XL160 Series AC-DC power supplies. Our patented technology yields a very small footprint reduces wasted power and offers the highest power density in the market in the 160-watt range. This unique design means reduced energy costs, a greater return on your investment, higher reliability, and longer product life.
HIGHLIGHTS
- 160W AC-DC
- Up to 90% Efficiency
- High Power Density: 8.5 W / cu in.
- Universal AC input
- Active PFC (90-264 VAC)
- Built in OR-ing Diodes for N+1 (Optional)
- 3” X 5” Small Footprint
- <1U High: 1.32″
- No Load Operation
- RoHS Compliant
- 48V, 54V POE Special Models available
HIGH EFFICIENCY IN A SMALL PACKAGE
PACKAGE The XL160 Series provides up to 90% efficiency y in an AC-DC power supply. Our unique design reduces energy consumption and generates less wasted d heat. It requires little forced air cooling, decreases es AC loads, increases reliability and economy of operation.
UNMATCHED POWER DENSITY
With an overall height of 1.32″ and a 3″ x 5″ footprint, the XL160 Series boasts a power density of 8.5 8.5 watts per cubic inch. It is ideally suited for OEMs OEMs u using industry standard 1U chassis. N2Power’s small l form factor power supplies allow you to work with additional “real estate” for more functionality is inside your product. Decreased space requirements, reduced thermal loads and lower costs will increase your competitive edge in the market.
PFC READY, SAVE ENERGY
Many countries require Power Factor Correorrected (PFC) power supplies, which lessen loads ds at generating stations. All XL160 products incorporate active PFC technology with universal input to provide superior efficiency in each supply. Comparisons ns of power loading show that our supplies can reduce consumption up to 50%.
REPEATABLE QUALITY
We use advanced PCB technology to deliver the highest density and best performance in the industry. Our p packaging design incorporates SMT technology to automate processes, ensure reliability, and reduce cost. Each power supply undergoes a complete functional test and a multi-hour burn-in to insure that every unit meets our stringent quality requirements. Detailed statistical production ion records are maintained and rigid quality and AVL control insures the the highest quality product available. Each power supply design is also rigorously tested by UL, with scheduled factory audits to ensure ongoing compliance
