SMX Power

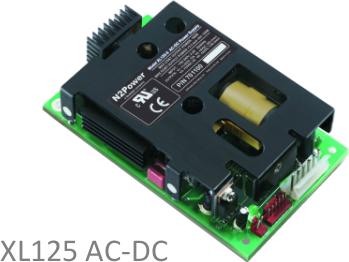

N2 Power XL125-48 CS
N2 Power XL125-48 CS
Couldn't load pickup availability
- 125 W AC-DC
- UP TO 92% EFFICIENCY
- HIGH POWER DENSITY: 6.7 W /in3
- UNIVERSAL AC INPUT
- ACTIVE PFC (90 – 264 VAC)
- BUILT IN OR-ING DIODES FOR N+1 (OPTIONAL)
- 3” X 5” SMALL FOOTPRINT
- <1U HIGH: 1.25”
- NO LOAD OPERATION
- RoHS COMPLIANT
| Part Number | 400007-61-3 | |
|---|---|---|
| Output | V1 | V2 |
| Voltage | 48 | 12 |
| Regulation(%) | ±3 | ±5 |
| maximum Current | 2.6 | 1.0 |
| Ripple & Noise(P-P) | 480 mV | 120 mV |
- Description
- Manufacturer
- 125 W AC-DC
- UP TO 92% EFFICIENCY
- HIGH POWER DENSITY: 6.7 W /in3
- UNIVERSAL AC INPUT
- ACTIVE PFC (90 – 264 VAC)
- BUILT IN OR-ING DIODES FOR N+1 (OPTIONAL)
- 3” X 5” SMALL FOOTPRINT
- <1U HIGH: 1.25”
- NO LOAD OPERATION
- RoHS COMPLIANT
| Part Number | 400007-61-3 | |
|---|---|---|
| Output | V1 | V2 |
| Voltage | 48 | 12 |
| Regulation(%) | ±3 | ±5 |
| maximum Current | 2.6 | 1.0 |
| Ripple & Noise(P-P) | 480 mV | 120 mV |
