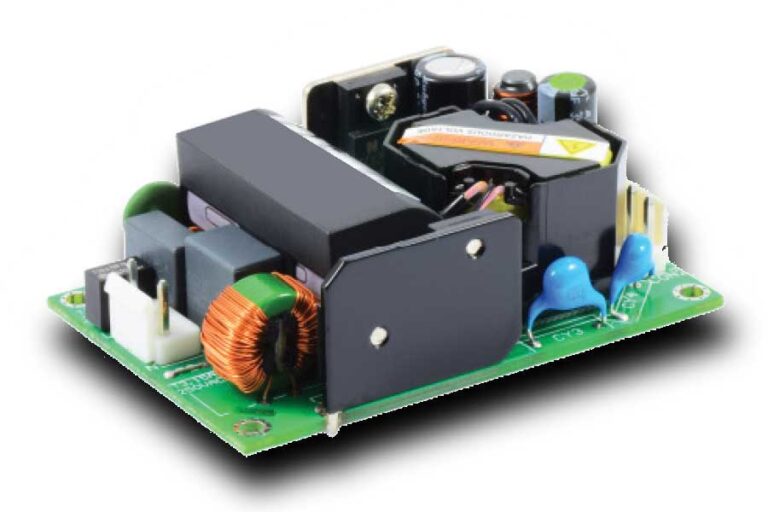

N2 Power ML65 series Multi-Output

N2 Power ML65 series Multi-Output

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
  • Description
  • Manufacturer
  • Description
  • High Efficiency Power Supplies

    HIGHLIGHTS

    • 65 W AC-DC
    • High efficiency (up to 93.5%
    • Low standby power consumption (≤ 0.15 W)
    • Wide input voltage range 85 to 264 VAC
    • Supports DC-DC input from 120 to 370 VDC
    • Convection cooled up to full power—no fan needed
    • Built-in EMI filter
    • Adjustable output voltage (±10%)
    • Open frame dimensions 2″ x 3.50″ x 1.04″
    • 4,000 VAC input to output 2×MOPP insulation
    • Protection Class I or Class II
    • Low leakage current (<75 uA)
    • Operating altitude up to 5,000 meters
    • 3-year warranty

    HIGH EFFICIENCY IN A SMALL PACKAGE

    The ML65 Multi-Output Series incorporates the latest advancements in power design to provide up to 93.5% efficiency in an AC-DC power supply. Its unique design reduces energy consumption and generates less wasted heat, decreasing AC loads and eliminating the need for forced air cooling. The result is a much more cost-effective operation.

    N2Power leads the power density race with its high efficiency ML65 AC-DC power supplies, which provide up to 93.5% efficiency. In fact, comparisons of efficiencies show that our supplies can reduce energy losses by up to 50%. Our advanced technology yields a very small footprint and offers the highest power density in its class. This unique design also generates less wasted heat—reducing the need for forced air cooling, decreasing AC power consumption, increasing reliability, and maximizing its economy of operation. By building our power supplies with a focus on maximizing efficiency, we can provide our valued customers with reduced energy costs, longer product lifespans, and a greater return on their investment.
