Mean Well EPP-400 series
Mean Well EPP-400 series
400W Single Output with PFC Function
FEATURES
- 5″×3″ miniature size
- Universal AC input / Full range
- Built-in active PFC function
- EMI Class B for ClassⅠ& Class A for Class Ⅱ configuration
- No load power consumption<0.5W by PS_ON control
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection for 250W and 400W with 25CFM forced air
- Built-in 12V/0.5A FAN supply
- Standby 5V@1A with fan , 0.6A without fan
- Built-in remote sense function
- LED indicator for power on
- Output 18V available
- Operating altitude up to 5000 meters
- 3 years warranty
APPLICATIONS
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
DESCRIPTION

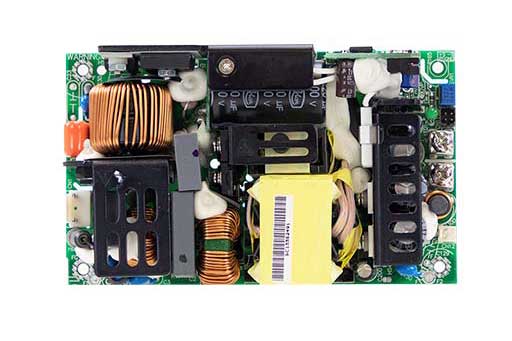

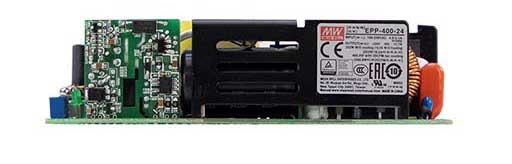

EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5″ by 3″ footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no-load power consumption is down below 0.5W. EPP-400 is able to be used for both ClassⅠ(with FG) and Class Ⅱ(no FG) system design. EPP-400 is equipped with complete protection functions; it complies with international safety regulations such as TUV BS EN/EN62368-1, TUV BS EN/EN60335-1, UL62368-1, and IEC62368-1. EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
