SMX Power

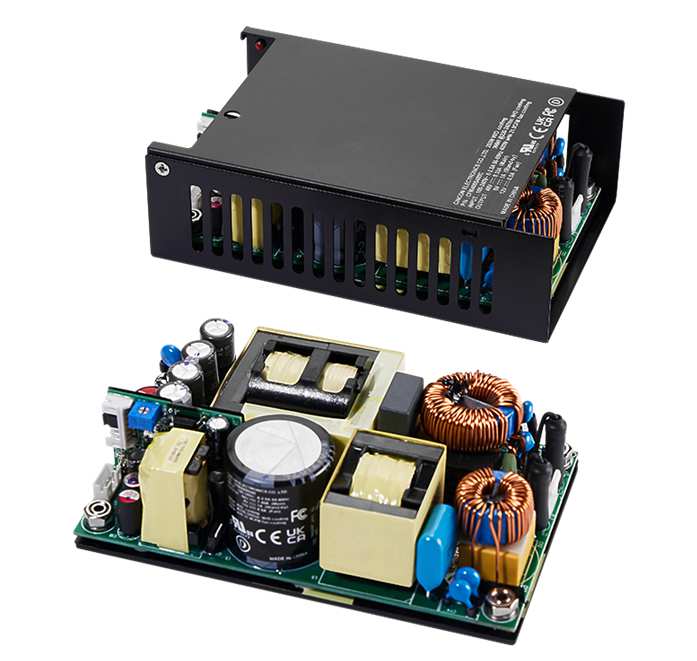

Cincon CFM400S540
Cincon CFM400S540
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
Features
- Universal Input Range 80~264Vac
- High Efficiency up to 94%
- 3”x 5” Compact Size
- Class I
- No Load Power Consumption<0.5W (PS-Off)
- Approval IEC/EN/UL 62368-1
- Approval EN 55032, 47 CFR FCC Part 15
- Active PFC Meets EN 61000-3-2
- Meets IEC/EN 60335-1
- High Power Density up to 17.3W/Inch3
- 370W Natural, 400W Conduction Convection
- Over Temperature Protection
- PS On/Off Remote Control
- Power Good & Power Fail Signal
- +5V Stand-by, 12V Fan Output
- Low Inrush Current
| Model Number | CFM400S540 | ||
|---|---|---|---|
| Output Voltage | 54 V | ||
| Output Current Note 1 | With Fan | 7.40 A | |
| Without Fan | Cover | 5.93 A | |
| Open |
5.19 A | ||
| Voltage Accuracy Note2 | ±1% | ||
| Ripple & Noise Note3 |
300 mV | ||
| Voltage Adj. Range | 51.3~56.7 V | ||
| Line Regulation Note4 | ±0.5% | ||
| Load Regulation Note5 | ±1% | ||
| %EFF. (typ.) | 94% | ||
- Description
- Manufacturer
Features
- Universal Input Range 80~264Vac
- High Efficiency up to 94%
- 3”x 5” Compact Size
- Class I
- No Load Power Consumption<0.5W (PS-Off)
- Approval IEC/EN/UL 62368-1
- Approval EN 55032, 47 CFR FCC Part 15
- Active PFC Meets EN 61000-3-2
- Meets IEC/EN 60335-1
- High Power Density up to 17.3W/Inch3
- 370W Natural, 400W Conduction Convection
- Over Temperature Protection
- PS On/Off Remote Control
- Power Good & Power Fail Signal
- +5V Stand-by, 12V Fan Output
- Low Inrush Current
| Model Number | CFM400S540 | ||
|---|---|---|---|
| Output Voltage | 54 V | ||
| Output Current Note 1 | With Fan | 7.40 A | |
| Without Fan | Cover | 5.93 A | |
| Open |
5.19 A | ||
| Voltage Accuracy Note2 | ±1% | ||
| Ripple & Noise Note3 |
300 mV | ||
| Voltage Adj. Range | 51.3~56.7 V | ||
| Line Regulation Note4 | ±0.5% | ||
| Load Regulation Note5 | ±1% | ||
| %EFF. (typ.) | 94% | ||
