SMX Power

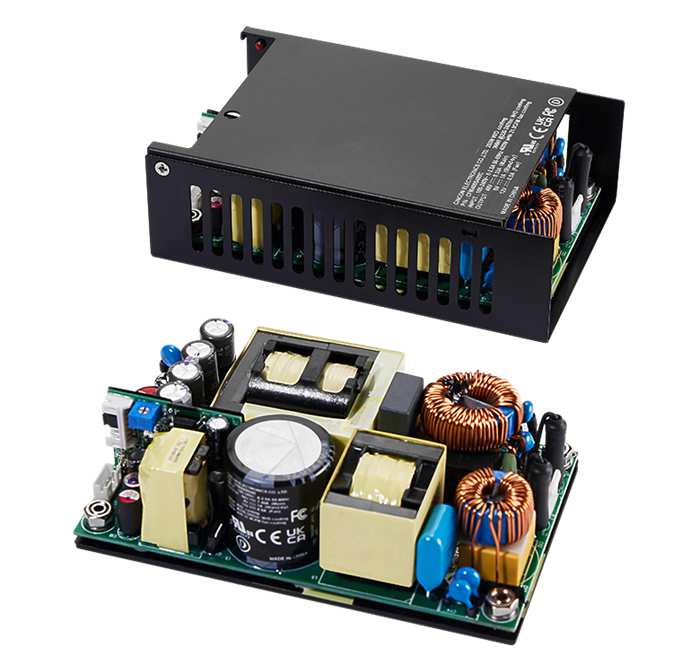

Cincon CFM400S240
Cincon CFM400S240
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
Features
- Universal Input Range 80~264Vac
- High Efficiency up to 94%
- 3”x 5” Compact Size
- Class I
- No Load Power Consumption<0.5W (PS-Off)
- Approval IEC/EN/UL 62368-1
- Approval EN 55032, 47 CFR FCC Part 15
- Active PFC Meets EN 61000-3-2
- Meets IEC/EN 60335-1
- High Power Density up to 17.3W/Inch3
- 370W Natural, 400W Conduction Convection
- Over Temperature Protection
- PS On/Off Remote Control
- Power Good & Power Fail Signal
- +5V Stand-by, 12V Fan Output
- Low Inrush Current
Model Number | CFM400S240 | ||
---|---|---|---|
Output Voltage | 24 V | ||
Output Current Note 1 | With Fan | 16.67 A | |
Without Fan | Cover | 13.33 A | |
Open |
11.67 A | ||
Voltage Accuracy Note2 | ±1% | ||
Ripple & Noise Note3 |
150 mV | ||
Voltage Adj. Range | 22.8~25.2 V | ||
Line Regulation Note4 | ±0.5% | ||
Load Regulation Note5 | ±1% | ||
%EFF. (typ.) | 94% |
- Description
- Manufacturer
Features
- Universal Input Range 80~264Vac
- High Efficiency up to 94%
- 3”x 5” Compact Size
- Class I
- No Load Power Consumption<0.5W (PS-Off)
- Approval IEC/EN/UL 62368-1
- Approval EN 55032, 47 CFR FCC Part 15
- Active PFC Meets EN 61000-3-2
- Meets IEC/EN 60335-1
- High Power Density up to 17.3W/Inch3
- 370W Natural, 400W Conduction Convection
- Over Temperature Protection
- PS On/Off Remote Control
- Power Good & Power Fail Signal
- +5V Stand-by, 12V Fan Output
- Low Inrush Current
Model Number | CFM400S240 | ||
---|---|---|---|
Output Voltage | 24 V | ||
Output Current Note 1 | With Fan | 16.67 A | |
Without Fan | Cover | 13.33 A | |
Open |
11.67 A | ||
Voltage Accuracy Note2 | ±1% | ||
Ripple & Noise Note3 |
150 mV | ||
Voltage Adj. Range | 22.8~25.2 V | ||
Line Regulation Note4 | ±0.5% | ||
Load Regulation Note5 | ±1% | ||
%EFF. (typ.) | 94% |
