SMX Power

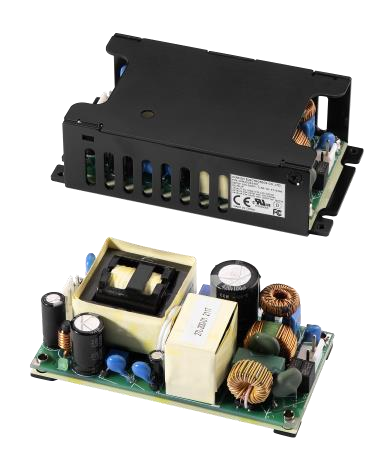

Cincon CFM202S280
Cincon CFM202S280
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
Features
- Universal Input Range 90~264Vac
- High Efficiency up to 94%
- 2”x 4” Open Frame Compact Size
- Class I & Class II (NOTE8)
- 150W with Natural Convection (CFM202SXXXB)
- 180W with Natural Convection (CFM202SXXXC)
- 200W with Fan-Cooled
- No Load Input Power Consumption<150mW
- Approval Safety IEC/EN/UL 62368-1 Ed 3.0
- Approval Safety IEC/EN 60335-1
- Operating Altitude 5000m
- Continuous Short Circuit Protection
- Over Voltage Protection
- Over Temperature Protection
- Active PFC Function
| Model Number | CFM202S280 | ||
|---|---|---|---|
| Output Voltage | 28 V | ||
| Output Current | With Fan NOTE7 | 7.14 A | |
| Without Fan | Cover | 6.42 A | |
| Baseplate | 5.35 A | ||
| Voltage Accuracy Note1 | 1% | ||
| Ripple & Noise Note2 |
280 mV | ||
| Line Regulation Note3 | ±0.5% | ||
| Load Regulation Note4 | ±1% | ||
| %EFF. (typ.) Note5 | 93% | ||
- Description
- Manufacturer
Features
- Universal Input Range 90~264Vac
- High Efficiency up to 94%
- 2”x 4” Open Frame Compact Size
- Class I & Class II (NOTE8)
- 150W with Natural Convection (CFM202SXXXB)
- 180W with Natural Convection (CFM202SXXXC)
- 200W with Fan-Cooled
- No Load Input Power Consumption<150mW
- Approval Safety IEC/EN/UL 62368-1 Ed 3.0
- Approval Safety IEC/EN 60335-1
- Operating Altitude 5000m
- Continuous Short Circuit Protection
- Over Voltage Protection
- Over Temperature Protection
- Active PFC Function
| Model Number | CFM202S280 | ||
|---|---|---|---|
| Output Voltage | 28 V | ||
| Output Current | With Fan NOTE7 | 7.14 A | |
| Without Fan | Cover | 6.42 A | |
| Baseplate | 5.35 A | ||
| Voltage Accuracy Note1 | 1% | ||
| Ripple & Noise Note2 |
280 mV | ||
| Line Regulation Note3 | ±0.5% | ||
| Load Regulation Note4 | ±1% | ||
| %EFF. (typ.) Note5 | 93% | ||
