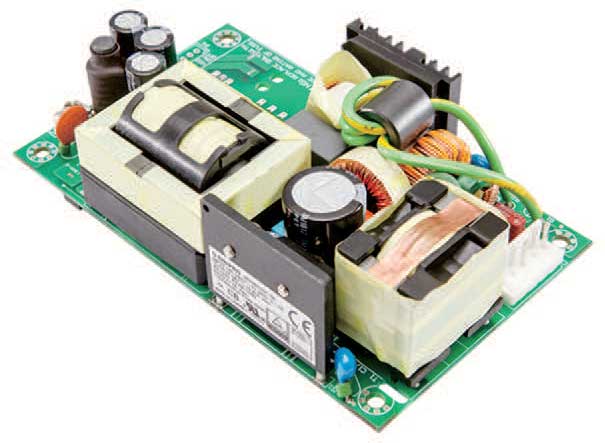

Sinpro MBU250 series

250W Open Frame Medical Grade Power Supply

The MBU250 series of AC/DC switching mode power supplies provide 250 Watts of continuous output power. All supplies are UL94V-1 min compliant. All models meet FCC Part-18, CISPR-11, and EN55011 class B emission Limits, IEC 60601-1-2:2014 and are designed to comply with UL/cUL, TUV T-mark, and conformity assessment in CE marking. All units are 100% burned in and tested.

FEATURES

• Wide Operating Voltage, 90 to 264 VAC, 47 to 63 Hz
• Single Output
• Protection: OVP, OLP, OTP
• Size : 3”x5”x1.46”
• Input to Output : 2MOPP
• High ESD immunity
• Suitable professional healthcare facility
• 5 year warranty

APPLICATIONS

• Patient Monitor
• Ultrasound system
• Portable medical device
• Blood chemistry analyzer
• Medical Image

GENERAL SPECIFICATION

• Short Circuit Protection: Auto Recovery
• Cooling: Free air convection
• Flammability Rating: UL94V-1
• Protection Classes: Class I
• Safety: IEC60601-1 Edition3.1, ES60601-1:2005(R2012), CSAC22.2 NO.60601-1:14, EN60601-1:2006/A1:2013
