Sinpro HBU 250 series

Medical & ITE Dual Safety Standards

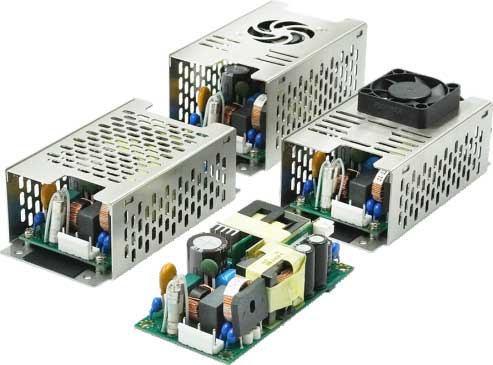

HBU250 / HEU250 series is a power supply with medical and ITE safety approvals that provides 250 Watts output power and is available in 12V-48V output with options for open-frame (2”x4”x1.23”) and cover with a fan. The series features a wide operating temperature of -40°C to +70°C.

FEATURES

• Wide Operating Voltage, 85 to 264VAC, 47 to 63 Hz
• Single Output from 12V to 48V
• Protection: OVP, OLP, OTP, SCP
• Size : 2”x4”x1.2”, 25.41W/in
• Input to Output:2MOPP
• High Surge Immunity
• Efficiency Up to 93%
• Peak 300W(90 to 264 VAC)(See FIG.3 On Page 2)
• 3-Year Warranty for Power Supply

GENERAL SPECIFICATION

• 150W full load at free air convection, 250W with 8CFM forced air.
• Protection Classes: Class I or Class II (See specification Note 9. at page 2)
• Safety: IEC62368-1 Edition2.0, UL62368-1, CAN/CSA-C22.2 NO.62368-1-14, EN62368-1:2014, IEC60601-1 Edition3.2, IEC 60601-1 Edition 3.1, ES60601-1:2005(R2012), CAN/CSA-C22.2 NO.60601-1:14, EN60601-1:2016/A1:2013
