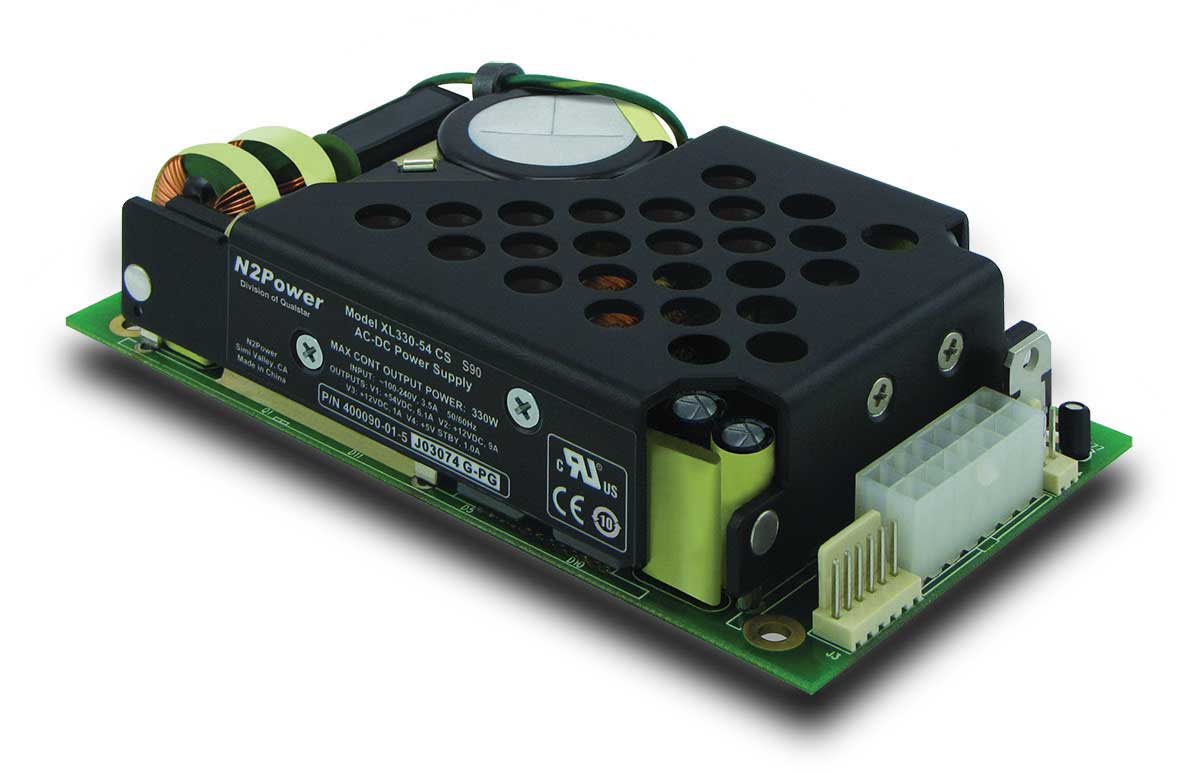

N2 Power XL330-54 series

Ultrasmall, High Efficiency Power Supplies

HIGHLIGHTS

• 330 W AC-DC
• Up to 91% efficiency
• High power density: over 15 W / cu in.
• 3” x 5.3” footprint
• All outputs may be paralleled
• Remote on/off
• 5 V standby output (1 A)
• 12 V aux output (1 A)
• Universal AC input
• Active PFC (90 – 264 VAC)
• Active current sharing for N, N+1
• Active inrush current protection
• RoHS compliant
• POE compliant
• 3 year warranty

COMPLETE PROTECTION

The main output is enabled whenever all of the required startup conditions are met, and is shut down upon command, loss of input power or whenever excessive loads or temperatures are sensed. When AC input power is lost it provides the host system with an advanced warning of an impending shutdown.

UNMATCHED POWER DENSITY

With an overall height of 1.35″ and a 3″ x 5.3″ footprint, the XL330-54 CS boasts a power density of over 15 watts per cubic inch. It is ideally suited for OEMs using the industry-standard 1U chassis.

HIGH EFFICIENCY IN A SMALL PACKAGE

N2Power leads the power density race with its high efficiency XL330-54 Series DC -DC power supplies, which provide up to 91% efficiency. In fact, comparisons of efficiencies show that our supplies can reduce energy losses by up to 50%. Our advanced technology yields a very small footprint and offers the highest power density in its class. This unique design also generates less wasted heat—reducing the need for forced air cooling, decreasing AC power consumption, increasing reliability, and maximizing its economy of operation. By building our power supplies with a focus on maximizing efficiency, we can provide our valued customers with reduced energy costs, longer product lifespans, and a greater return on their investment.
